TMP Series

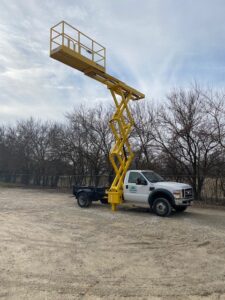

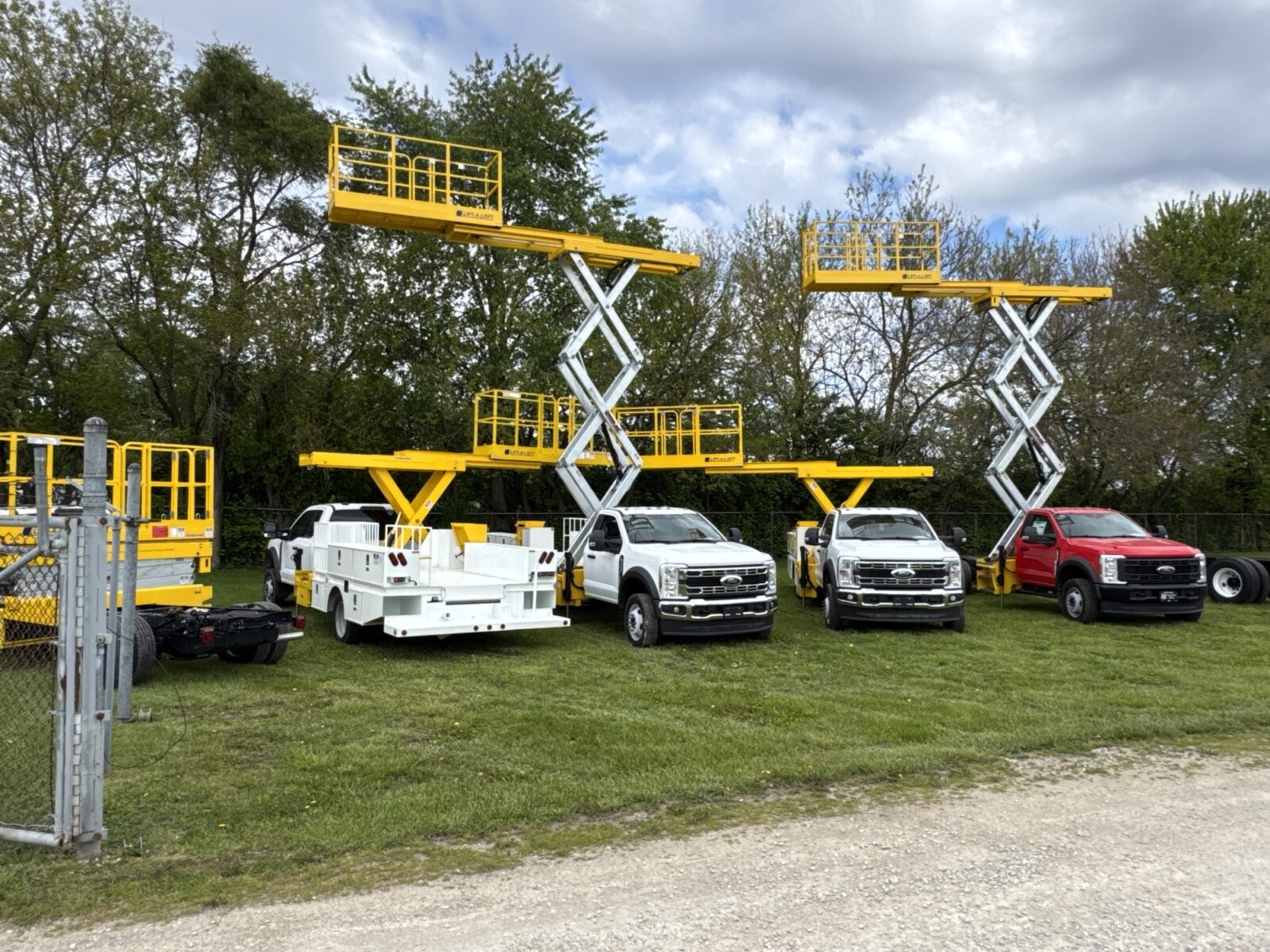

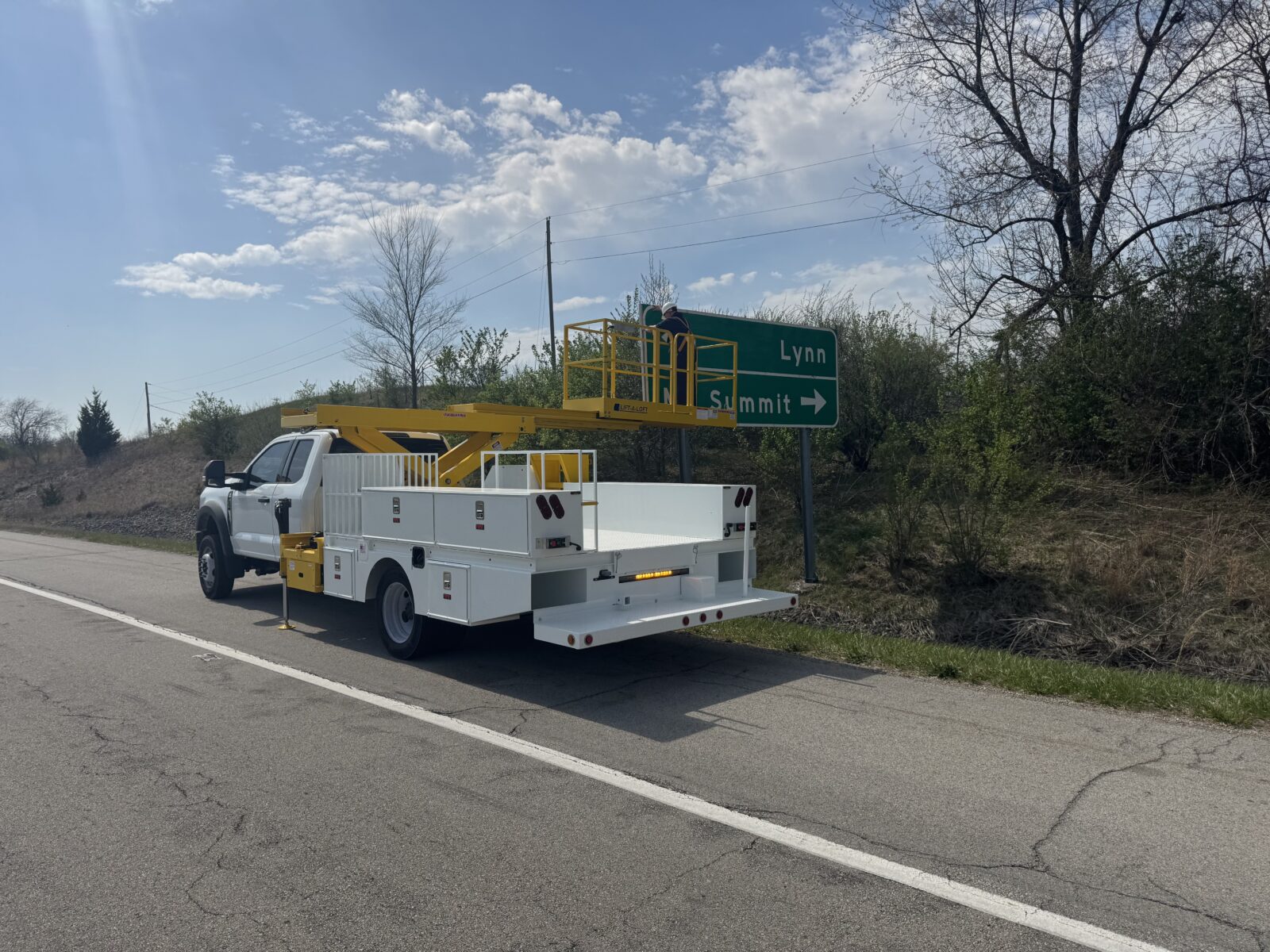

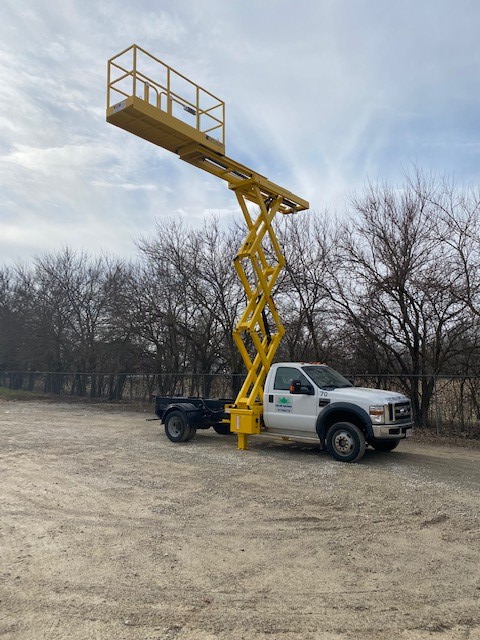

The TMP22-12 and 10-12 are truck mounted scissor lifts with a side traverse feature that allows 12ft of side reach. These units can be used for a variety of access needs such as sign work, streetlight maintenance, and highway applications. These units are mounted to truck frames and given leveling stabilizers for unmatched stability off to the side and can be equipped with a variety of options such as flatbeds, utility beds, DOT spec lighting and more.

Model	TMP10-12	TMP22-12
Maximum Platform Height:	10′ 3.02m	22′ 6.71m
Minimum Platform Height:	4’3″ 1.30m	6′ 1.83m
Capacity:	900 lbs. 408.23 kg.	900 lbs. 408.23 kg.
Platform Extended Capacity:	600 lbs. 272.16 kg.	600 lbs. 272.16 kg.
Platform Size:	32″ x 102″ .81m x 2.60m	32″ x 102″ .81m x 2.60m
Chassis Dependant:	13,000 lbs. 5,896.70 kg.	14,120 lbs. 6,404.72 kg.
Overall Shut Height:	7’11” 2.41m	9’2″ 2.80m
Overall Length:	27’9″ 8.50m	341″ 8.66m
Overall Width:	105″ 2.67m	104″ 2.64m
Minimum GVW Requirement:	14,000 lbs. 6,350.30 kg.	14,000 lbs. 6,350 kg.
