Medium & Light Duty Lifts
IMPAC Series

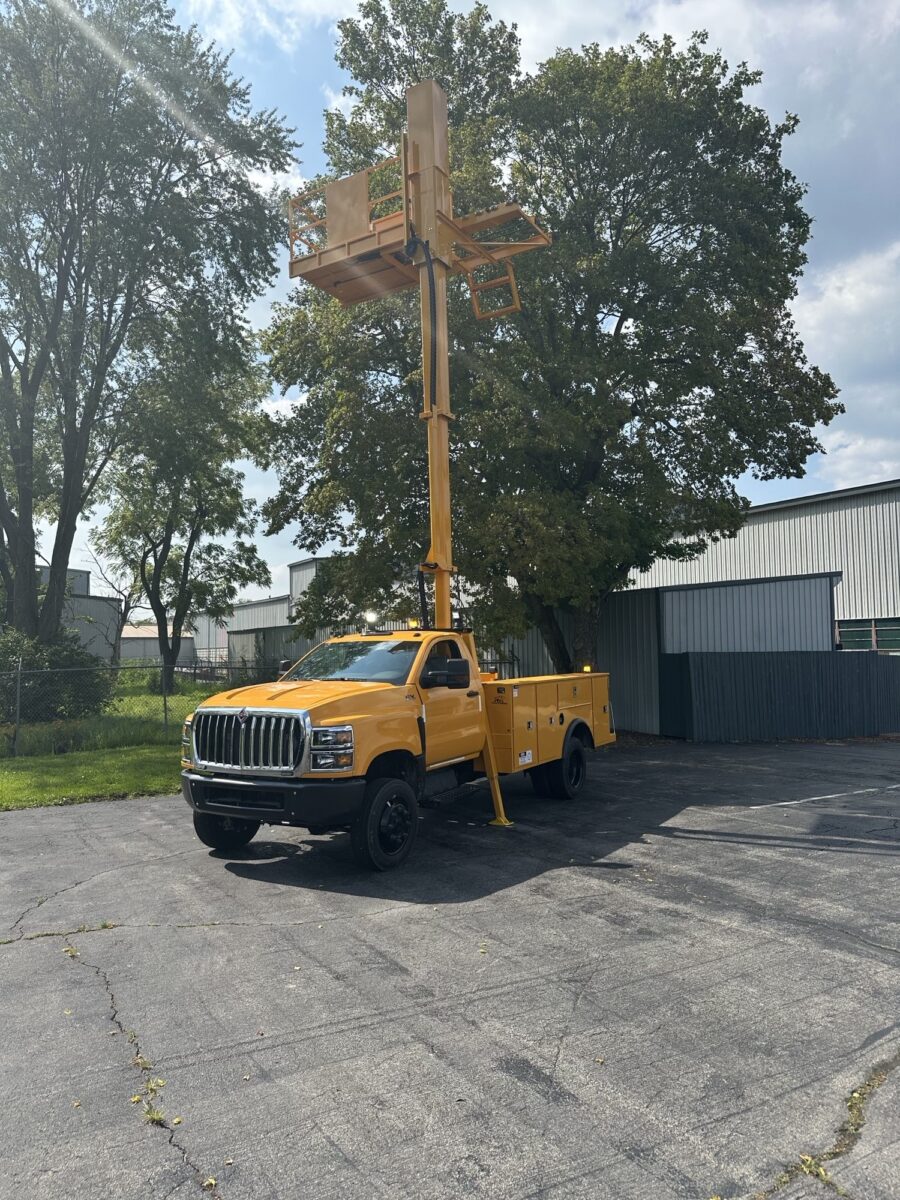

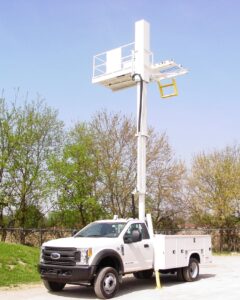

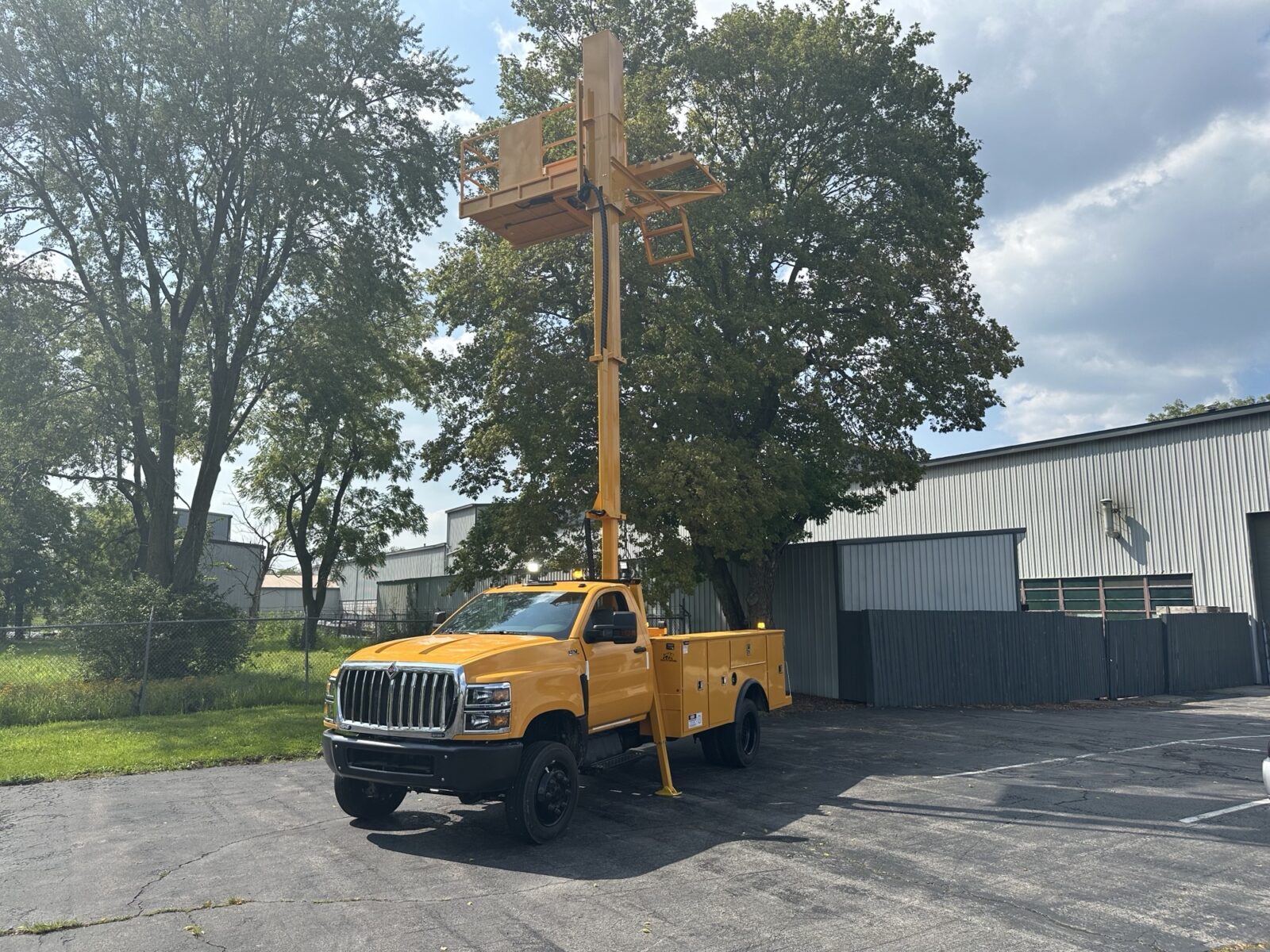

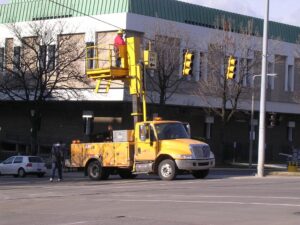

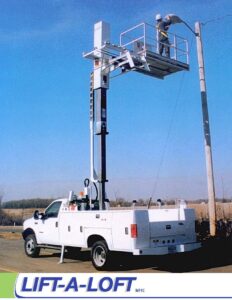

The IMPAC series is mounted on an over the road chassis. This unit can be used for signal maintenance, street light repair and under bridge inspections as well as other applications.
Product Specifications
| Model | IMPAC IM-18 | IMPAC IM-24 | IMPAC IM-28 |
|---|---|---|---|
| Maximum Platform Height: | 18’4″ 5.59m | 24’8″ 7.52m | 28’8″ 8.74m |
| Minimum Platform Height: | 74″ 1.87m | 74″ 1.87m | 74″ 1.87m |
| Maximum reach from Center Line of Unit | 8’10” 2.69m | 8’10” 2.69m | 8’10” 2.69m |
| Capacity: | 500 lbs. 226 kg. | 500 lbs. 226 kg. | 500 lbs. 226 kg. |
| Unit Weight: | 4,500 lbs. 2041 kg. | 5,000 lbs. 2267 kg. | 5,500 lbs. 2494 kg. |
| Overall Shut Height: | 10′ 3.05m | 11’2″ 3.40m | 13’1″ 3.99m |
| Platform Size: | 36″ x 84″ .91m x 2.13m | 36″ x 84″ .91m x 2.13m | 36″ x 84″ .91m x 2.13m |
| Overall Length: | 7′ 2.13m | 7′ 2.13m | 7′ 2.13m |
| Overall Width: | 5’4″ 1.63m | 5’4″ 1.63m | 5’4″ 1.63m |
| GVW Requirement | 11,000 lbs. 4989 kg. | 11,000 lbs. 4989 kg. | 11,000 lbs. 4989 kg. |
Features
- Lanyard Attachment Points
- Engine Re-Start in Platform
- Heavy Duty Telescopic Mast Design
- Side Traversing Platform
- Fold up Entry Step
- Emergency Lower Controls at Base and Platform
Add-On Options
- 2 Strobe Lights
- 48″ (1.22m) Wide Platform
- 700 lbs Capacity Aluminum Platform
- On Board Power Inverter
