TMPAPX-23

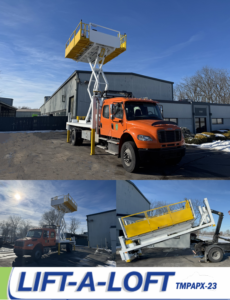

Introducing the TMPAPX-23, a groundbreaking innovation in the lift industry that redefines mobility and versatility. Mounted on a hook lift system, the TMPAPX-23 can be effortlessly rolled on and off the truck, providing unparalleled flexibility for various applications. Its spacious platform offers ample room for operators and equipment, making it ideal for tasks that demand stability and efficiency at elevated heights.

Model	TMPAPX-23
Maximum Platform Height:	22′ 10″ 6.96m
Minimum Platform Height:	7′ 3″ 2.21m
Platform Dimensions:	14′ x 7’6″ 4.27m x 2.29m
Overall Shut Height:	10’5″ 3.18m Chassis Dependent*
Platform Capacity:	3,000 lbs. 1,360.78 kg.
Weight:	30,280 lbs. 13,734.78 kg. With Chassis*

Warning Lights Dash Mounted Indicating – Lift Raised & PTO On
Raise And Lower Controls In Platform And Mounted To Chassis
Heavy Duty Rollers And Quick Disconnect To Allow Hook Lift To Remove Platform With Lift On It
Recessed Lanyard Attachment Points
Engine Stop & Re-Start In Platform
4 Independently Controlled Stabilizers
Mountable Worklight In The Platform
3 Separate 2′ (.61m) Push Out Deck Extensions On Both Sides Of The Platform
