High-Capacity Lifts
TMHCL

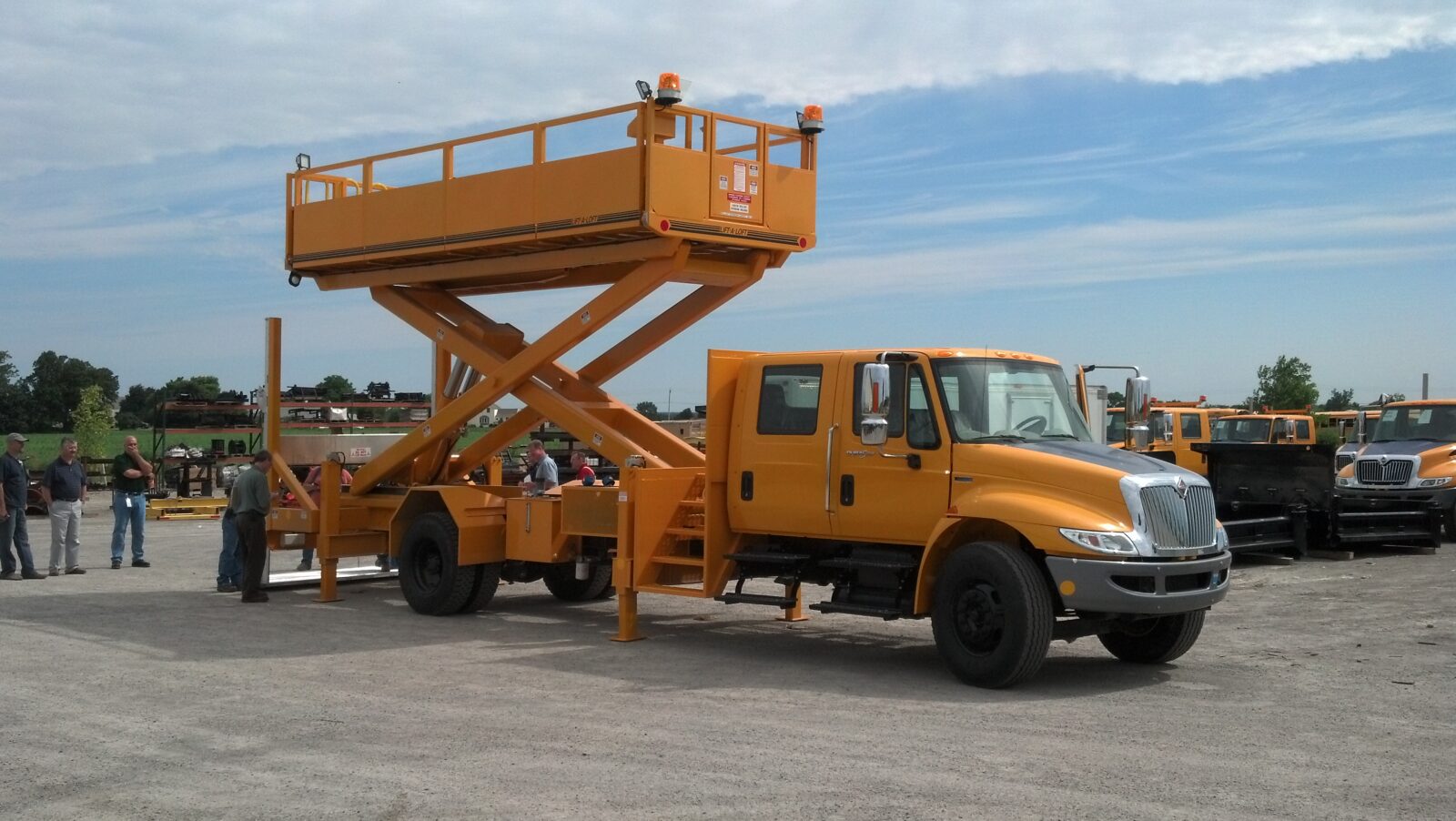

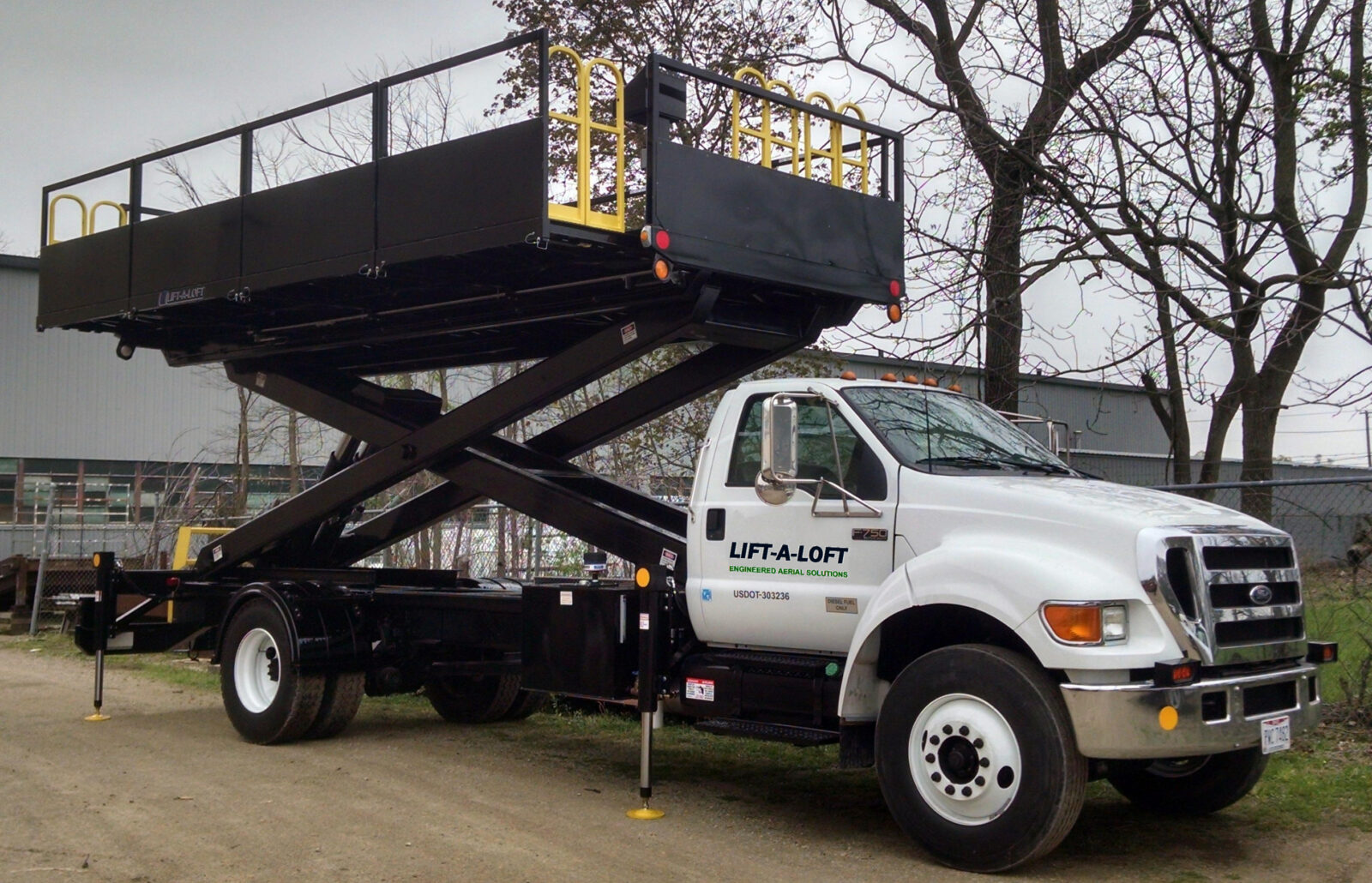

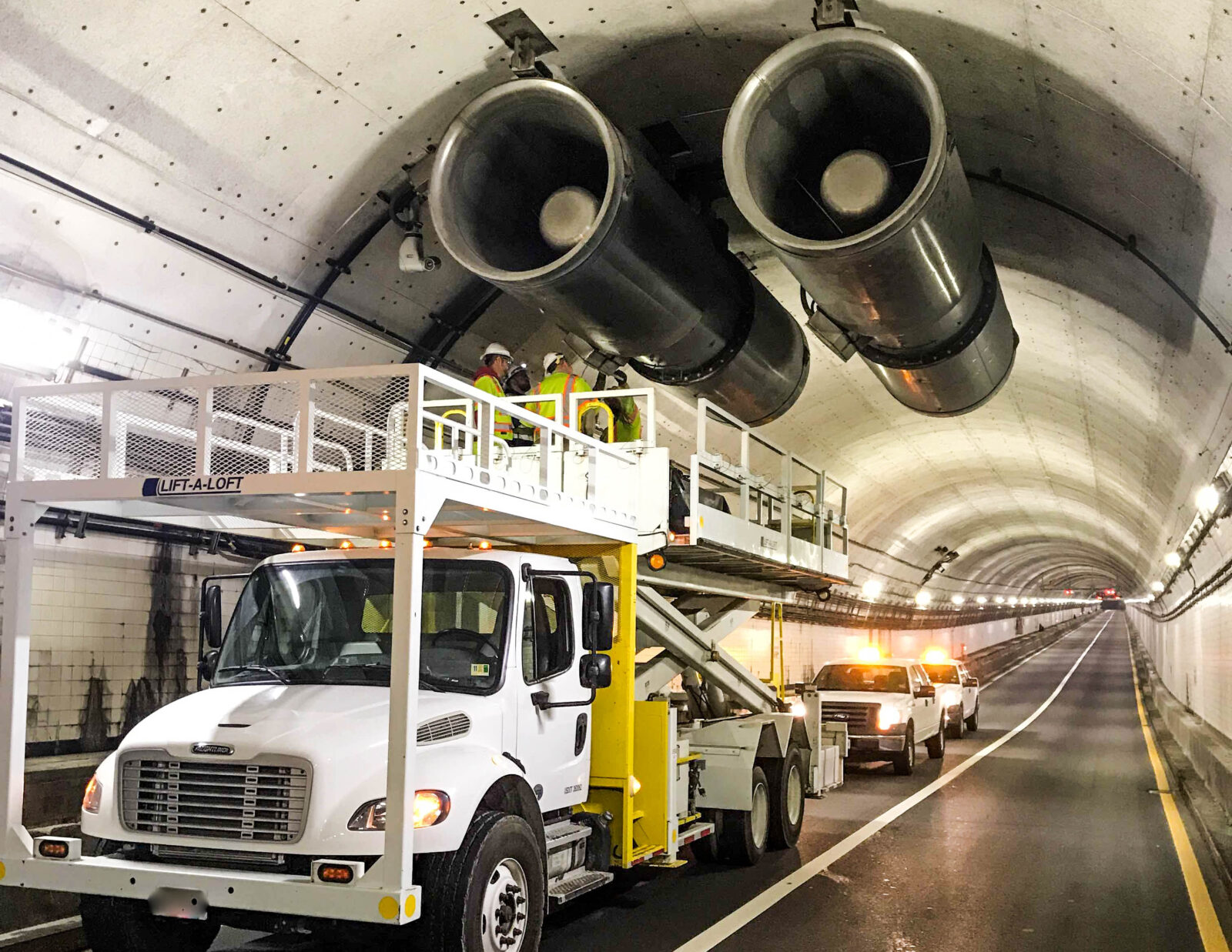

This high-capacity lift is designed for bridge and tunnel inspection and repairs. The unit offers up to 10,000 lbs of capacity. It also includes vertical stabilizers that allow the unit to position in a single lane of traffic.
Product Specifications
| Model | TMHCL |
|---|---|
| Maximum Platform Height: | 20′ 6.10m |
| Minimum Platform Height: | 6′ 1.83m |
| Capacity: | 10,000 lbs. 4,535.92kg. |
| Unit Weight: | 25,220 lbs. 11,439 kg. |
| Overall Shut Height: | 10’5″ 3.18m |
| Platform Dimensions: | 20′ x 8′ 6.1m x 2.44m |
Features
- Engine Re-Start in Platform
- Emergency Lower Controls
- Removable Side Rails
- High Capacity Lift System
- 4 Hydraulic Stabilizers
- 6 Lanyard Attachment Points
- Cargo Tie Down Points
Add-On Options
- DC to AC Inverter
- 22 CFM Air Compressor
- Fold down Guardrails
- Manual Push Out 28″ (.71m) Side Extensions on Both Sides of Platform
- Back Up Camera
- Other Custom Features and On-Board Tools Available
Product Videos

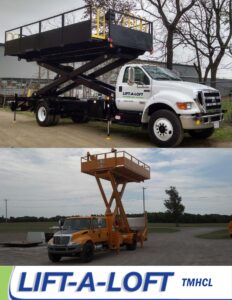

Download Product Brochure
