Industrial Maintenance Lifts
AMV36 Series

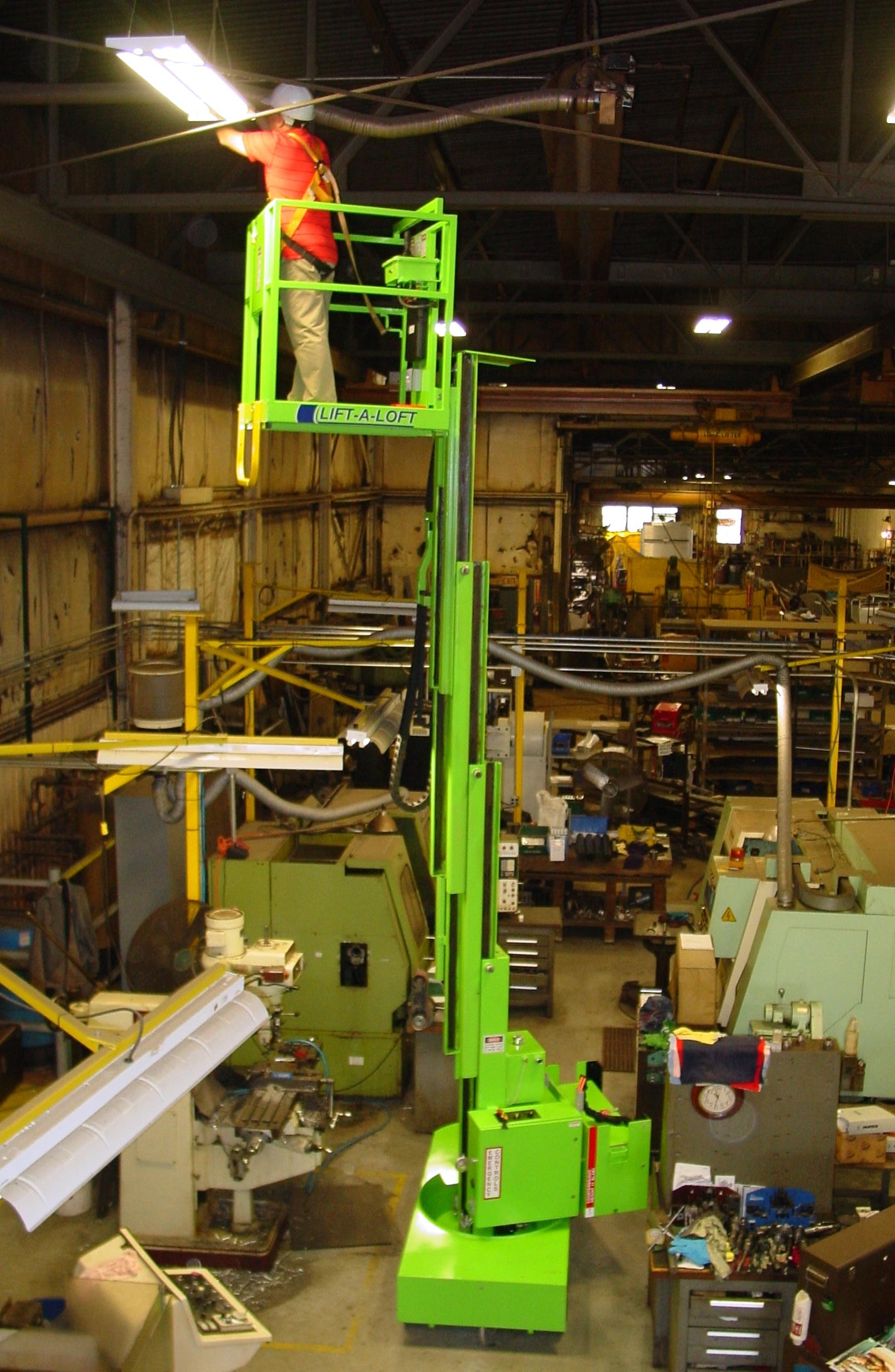

The AMV36 Series offers a very maneuverable vertical mast lift design in a durable package. These units are built to work in narrow aisles and are capable of operating in harsh environments.
Product Specifications
| Model | AMV36-19 | AMV36-23 |
|---|---|---|
| Maximum Platform Height: | 19’3″ 5.86m | 23’3″ 7.09m |
| Minimum Platform Height: | 21″ .53m | 23″ .58m |
| Maximum Reach from Center Line of Unit: | 4’6″ 1.37m | 4’6″ 1.37m |
| Rotation: | 360 Degrees Continuous | 360 Degrees Continuous |
| Capacity: | 500 lbs. 226 kg. | 500 lbs. 226 kg. |
| Unit Weight: | 5,460 lbs. 2,476 kg. | 6,640 lbs. 3,011 kg. |
| Overall Shut Height: | 6’10” 2.08m | 7’11 2.41m |
| Platform Size: | 36″ x 36″ .91m x .91m | 36″ x 36″ .91m x .91m |
| Overall Length: | 8’4″ 2.54m | 8’4″ 2.54m |
| Overall Width: | 3′ .91m | 3′ .91m |
Features
- Drivable at Full Elevation
- Fully Proportional Controls
- Low Battery Detector with Lift Interrupt
- 24 Volt System
- Durable Construction
- Low Platform Entry Height
Add-On Options
- Non-Marking Tires
- 1/2″ Air Line to the Platform
- Motion Alarm (All)
- Blinking Light
