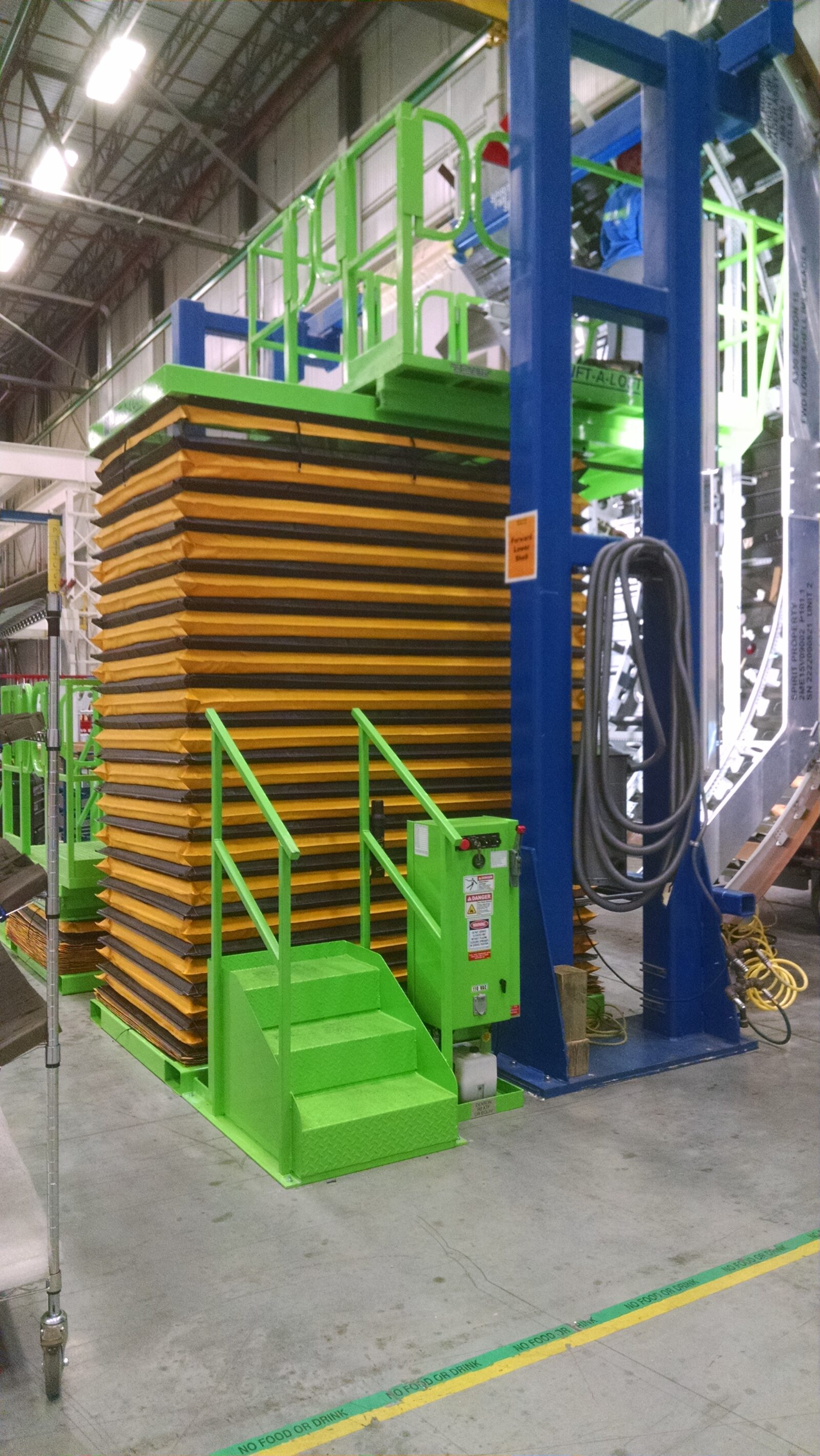

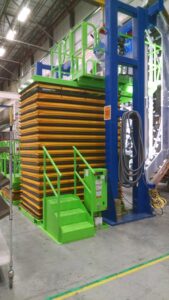

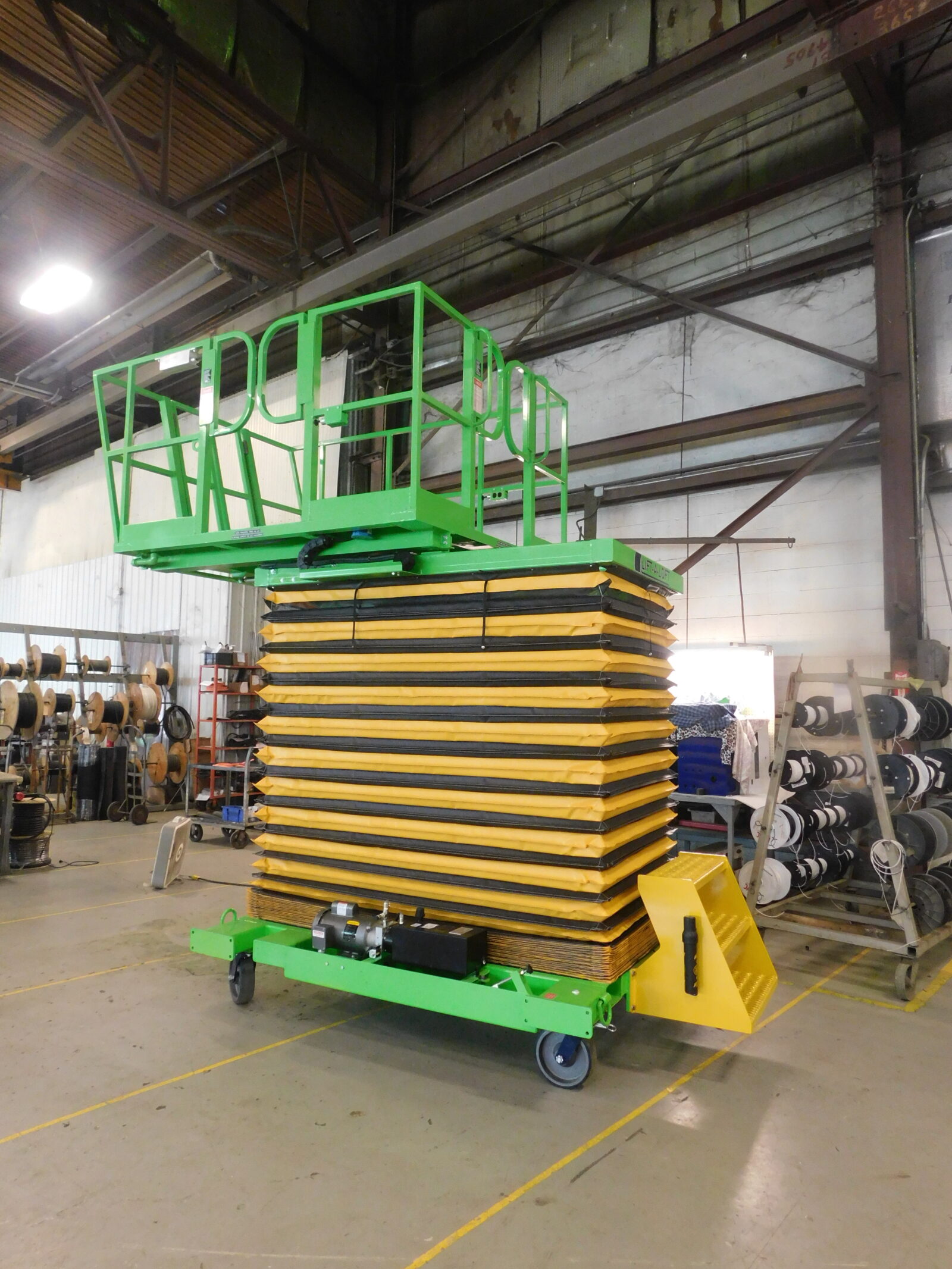

MP Series

LIFT-A-LOFT has 5 standard models of the Manually Positioned lifting platforms. The MP lends itself to various engineered special order items that have been produced over the years. These units could either be stationary or mobile, according to the needs of the final consumer.

Model	MP15	MP19	MP24	MP25	MP31
Maximum Platform Height:	15′ 4.57m	19’6″ 5.94m	23’8″ 7.21m	25’3″ 7.70m	31′ 9.45m
Minimum Platform Height:	32″ .81m	36″ .91m	40″ 1.02m	39″ .99m	45″ 1.14m
Capacity:	1,000 lbs. 453 kg.	1,500 lbs. 680 kg.	1,000 lbs. 453 kg.	1,500 lbs. 680 kg.	1,000 lbs. 453 kg.
Unit Weight:	2,000 lbs. 907 kg.	2,360 lbs. 1,070 kg.	2,950 lbs. 1,338 kg.	3,485 lbs. 1,580 kg.	3,860 lbs. 1,750 kg.
Overall Shut Height:	5’11” 1.80m	6’3″ 1.91m	6’7″ 2.01m	6’6″ 1.98m	7′ 2.13m
Platform Size:	30″ x 75″ .76m x 1.90m	30″ x 75″ .76m x 1.90m	30″ x 75″ .76m x 1.90m	45″ x 101″ 1.14m x 2.56m	45″ x 101″ 1.14m x 2.56m
Overall Length:	7’2″ 2.18m	7’2″ 2.18m	7’2″ 2.18m	9’4″ 2.84m	9’4″ 2.84m
Overall Width:	2’7″ .79m	2’7″ .79m	2’7″ .79m	3’9″ 1.14m	3’9″ 1.14m
