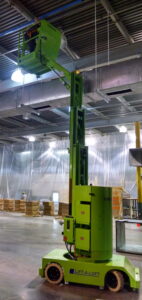

AMR40 Series

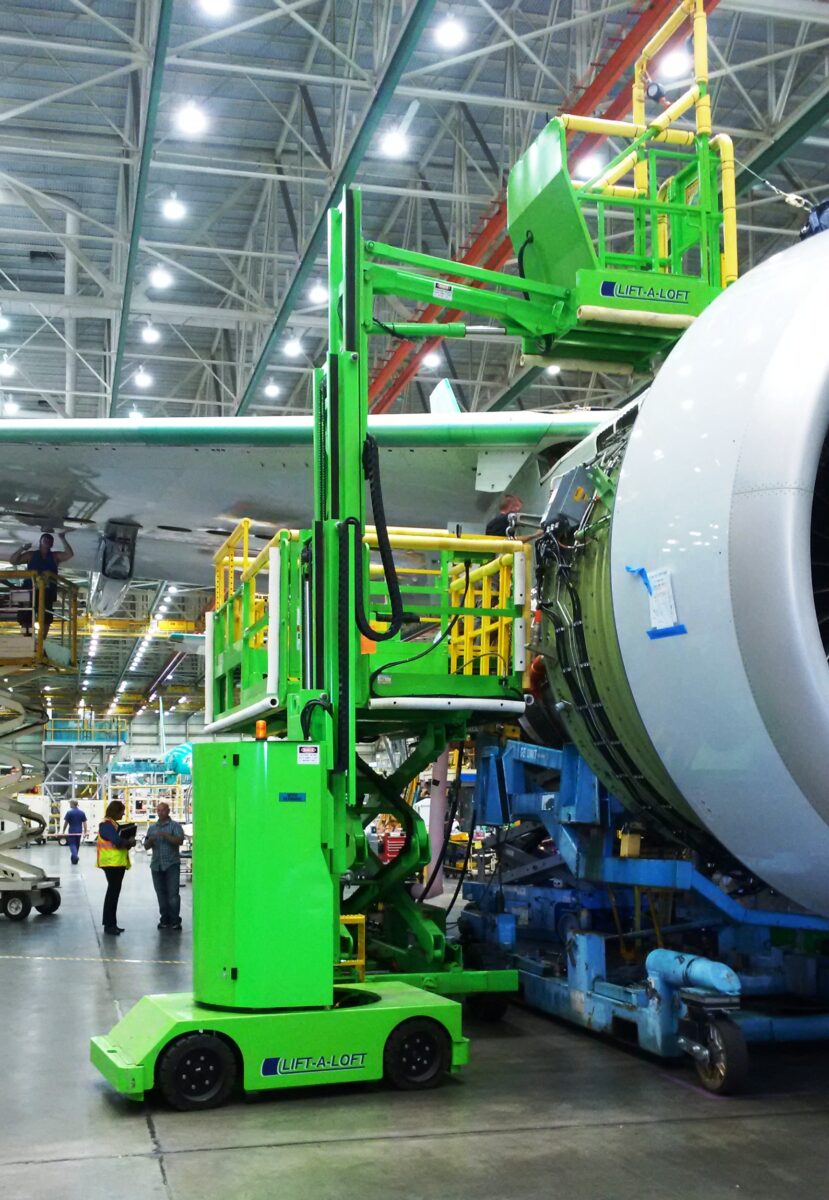

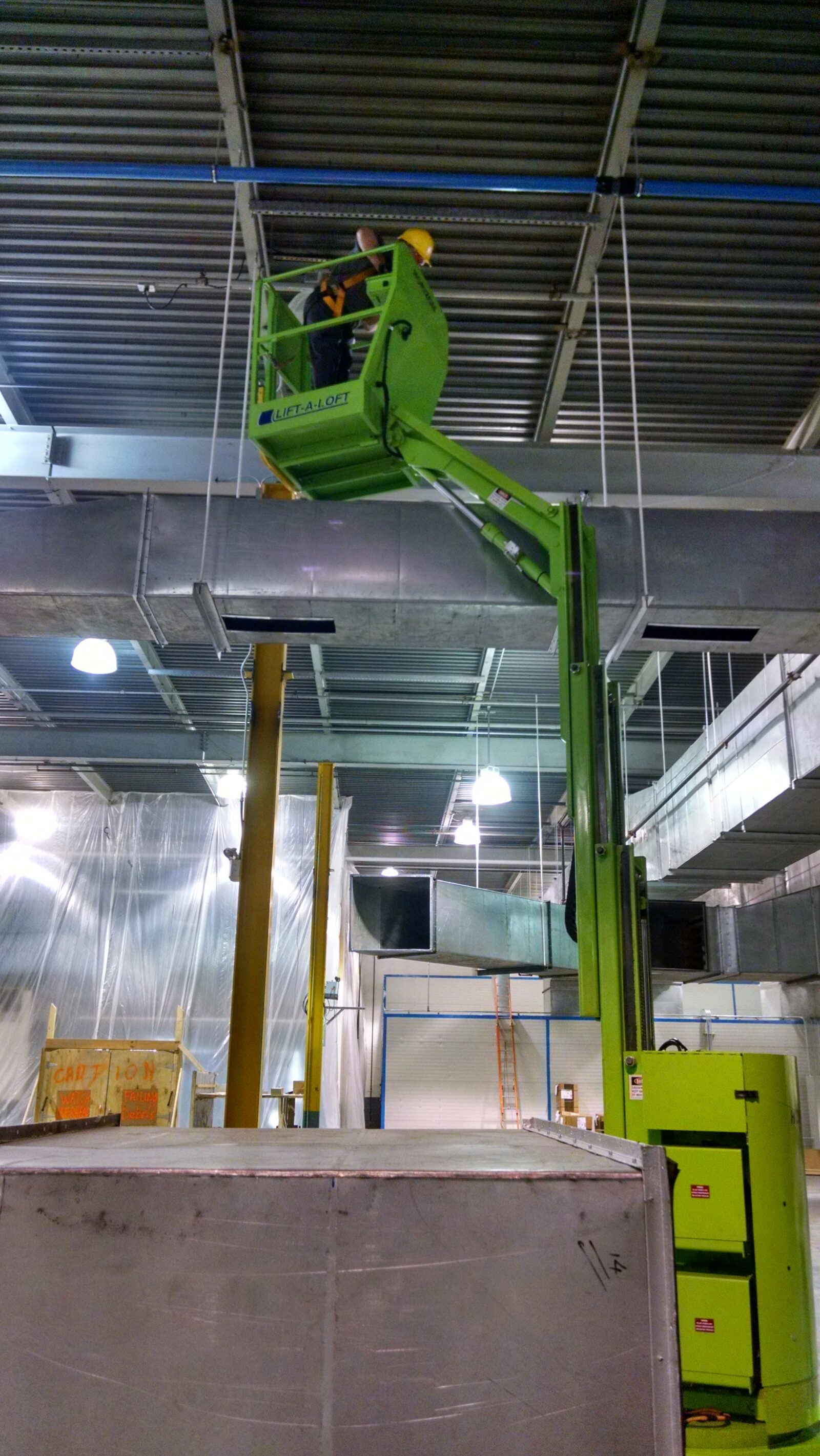

Designed for a wide range of applications, the AMR40 Series offers many features not found in conventional aerial lifts. The AMR40 is the product of choice for customers with narrow aisles and congested plant environments. The AMR40 is a very solid machine built with the same rigid guidelines as other Lift-A-Loft products. AMR40 units can also be equipped with a built-in overhead fall arrest system. The entire machine is made in the USA.

Model	AMR-40-18	AMR40-22	AMR48-29
Maximum Platform Height:	22’4″ 6.81m	25’6″ 7.77m	32’10” 10.01m
Maximum Platform Height at Max Reach	18’3″ 5.56m	21’5″ 6.53m	28’8″ 8.74m
Minimum Platform Height:	24″ .61m	24″ .61m	27″ .69m
Maximum Reach from Center Line of Unit:	8’7″ 2.62m	8’7″ 2.62m	8’7″ 2.62m
Rotation:	360 Degrees Continuous	360 Degrees Continuous	360 Degrees Continuous
Capacity:	500 lbs. 226 kg.	500 lbs. 226 kg.	400 lbs. 181 kg.
Unit Weight:	7,490 lbs. 3,397 kg.	7,640 lbs. 3,485 kg.	10,440 lbs. 4,735 kg.
Overall Shut Height:	6’7″ 2.01m	7’8″ 2.34m	8’10” 2.69m
Platform Size:	36″ x 38″ .91m x .96m	36″ x 38″ .91m x .96m	36″ x 38″ .91m x .96m
Overall Length:	9’2″ 2.79m	9’2″ 2.79m	9’5″ 2.87m
Overall Width:	3’5″ 1.04m	3’5″ 1.04m	4′ 1.22m
