Other Equipment
FBCT Series

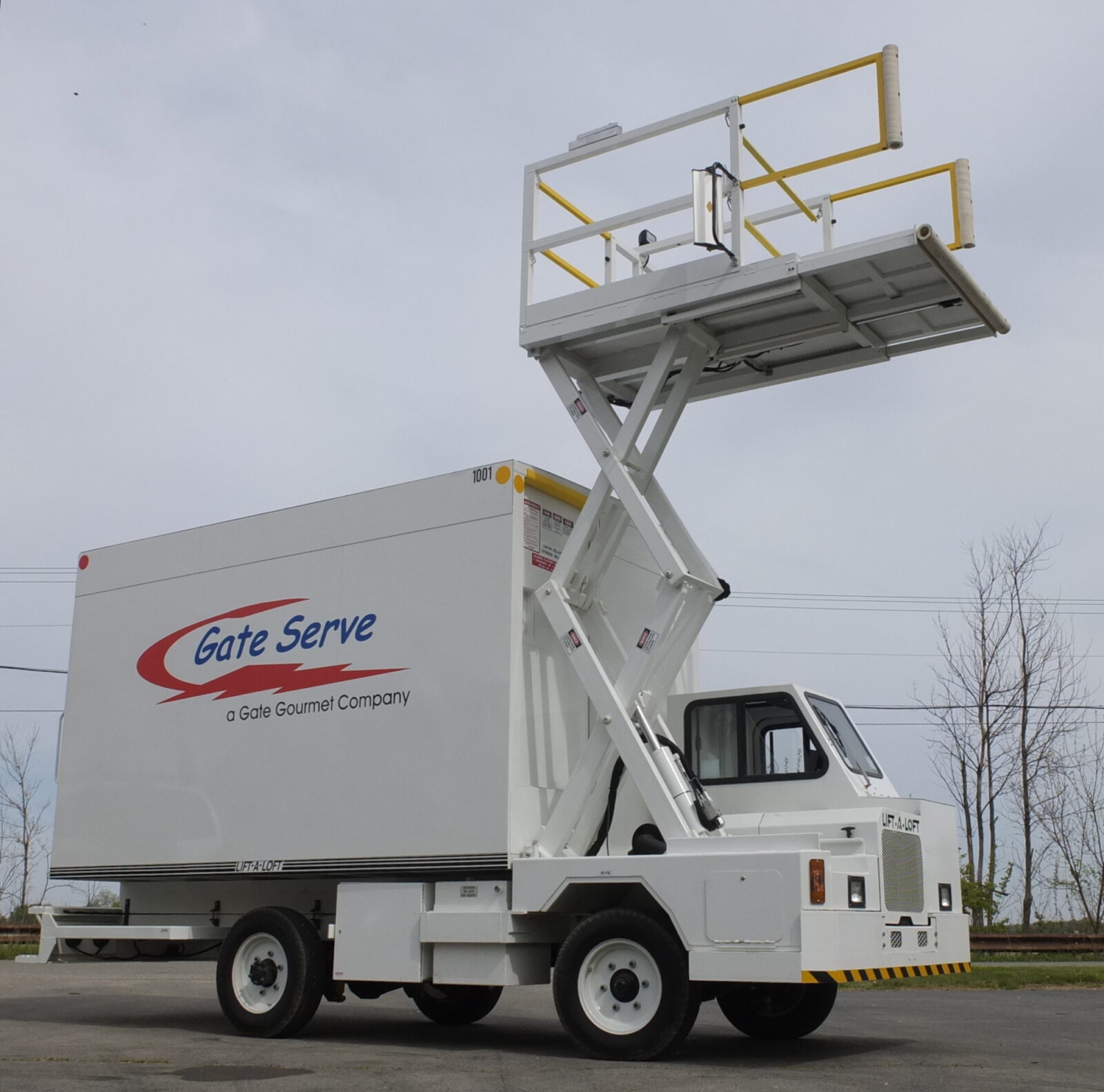

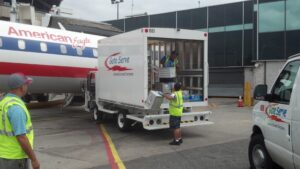

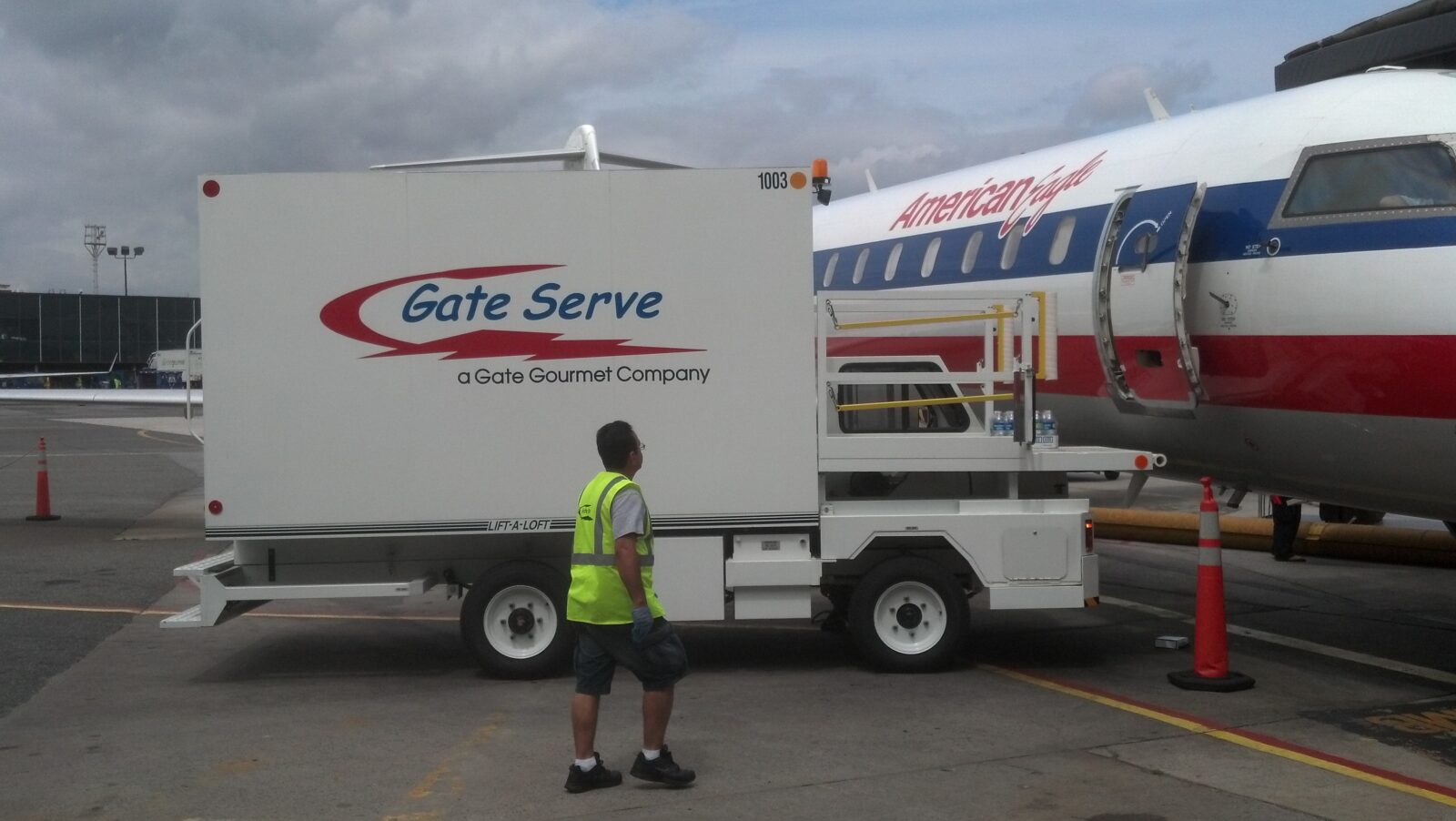

The FBCT is a durable ramp chassis with a fixed van body at the rear. An access ramp or scissor lift platform is located at the front of the vehicle for interfacing regional jets and other aircraft. The FBCT offers a good option for catering operations.
Product Specifications
| Model | FBCT-R RJ Catering Vehicle | FBCT-L Catering Vehicle |
|---|---|---|
| Maximum Platform Height: | 4’4″ 1.32m | 12’6″ 3.81m |
| Minimum Platform Height: | 52″ 1.32m | 52″ 1.32m |
| Capacity: | 2,500 lbs. 1,133 kg. | 2,500 lbs. 1,133 kg. |
| Unit Weight: | 8,000 lbs. 3,628 kg. | 8,820 lbs. 4,000 kg. |
| Overall Shut Height: | 10’2″ 3.10m | 10’2″ 3.10m |
| Platform Size: | 51″ x 79″ 1.30m x 2.01m | 47″ x 66″ 1.19m x 1.68m |
| Overall Length: | 19’8″ 5.99m | 19’8″ 5.99m |
| Overall Width: | 7′ 2.13m | 7′ 2.13m |
| Wheel Base: | 94″ 2.39m | 94″ 2.39m |
| GVW Requirement | 17,000 lbs. 7,711 kg. | 17,000 lbs. 7,711 kg. |
Features
- Extendable Platform Rails
- Large Rear Storage Box
- Sliding Front Door
- Tight 16′ Turning Radius
- Roll Up Rear Door
- 1 Man Drivers Cab
Add-On Options
- Blinking Light
- Back up camera at rear with monitor in cab
- Cabin Air Conditioning
- Cold Weather package
- On-Board Fire Extinguisher
Product Videos
Download Product Brochure
