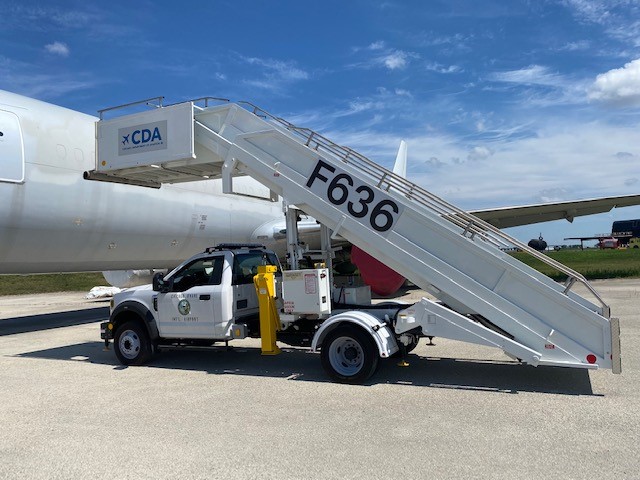

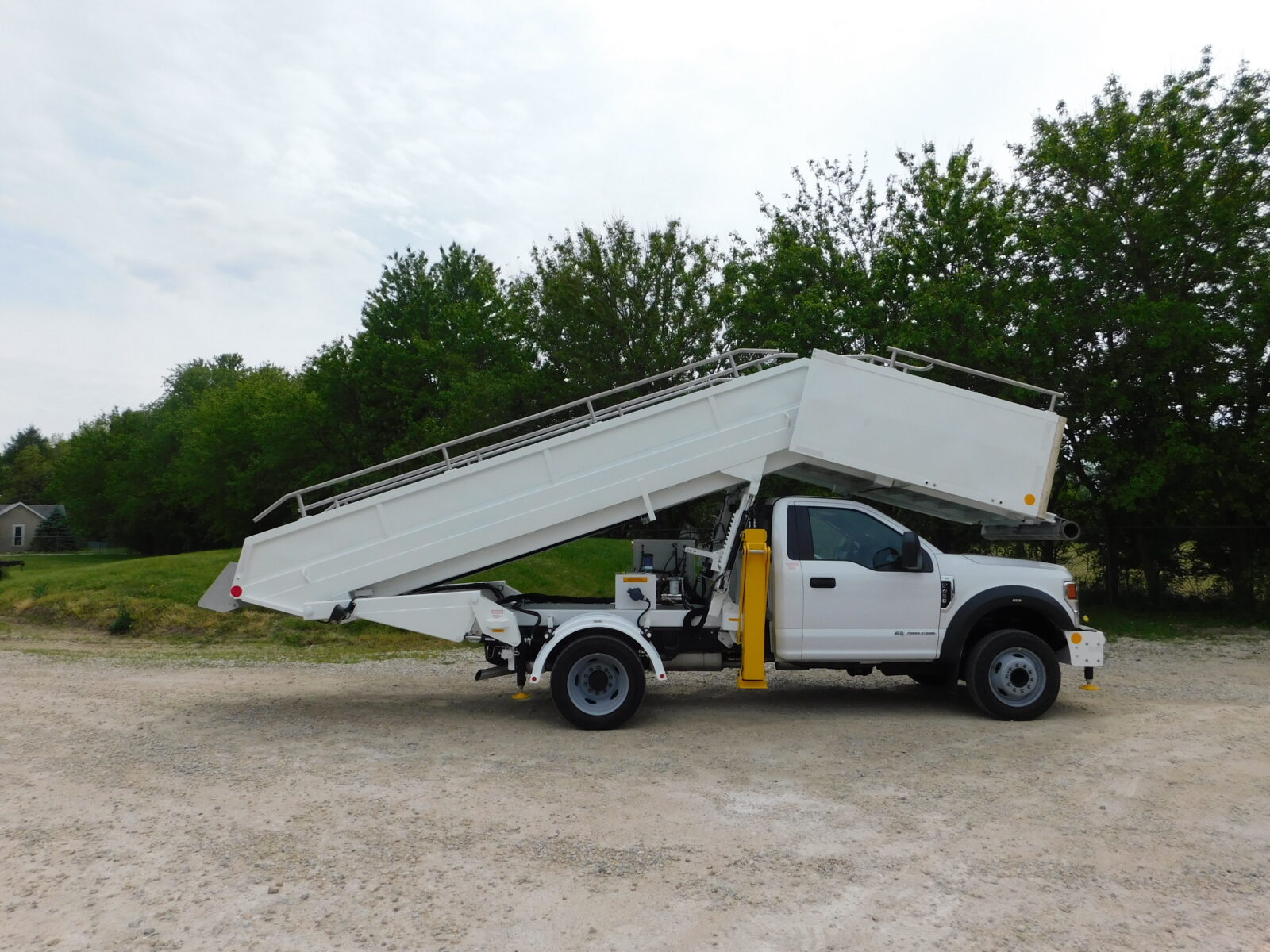

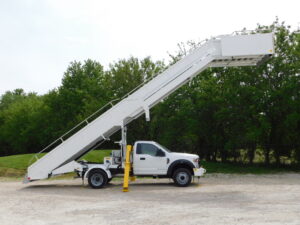

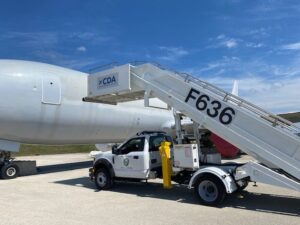

AS228 Air Stair
The AS228 Aircraft Boarding Staircase was designed for the safe and efficient boarding and de-boarding of narrow and wide bodied aircraft. The staircase can be mounted on a commercial chassis and is used worldwide to interface commercial aircraft.
Product Specifications
| Model | AS228 Air Stair |
|---|---|
| Maximum Platform Height: | 19′ 5.79m |
| Minimum Platform Height: | 96″ 2.43m |
| Capacity: | 1,000 lbs. 453 kg. |
| Unit Weight: | 14,060 lbs. 6,377 kg. |
| Overall Shut Height: | 10’6″ 3.20m |
| Platform Size: | 36″ x 72″ .91m x 1.82m |
| Overall Length: | 25’6″ 7.77m |
| Overall Width: | 7’2″ 2.18m |
| Wheel Base: | 141″ 3.58m |
| GVW Requirement | 15,000 lbs. 6803 kg. |
Features
- Front Swivel Platform
- Extendable Platform Rails
- 6 Hydraulic Stabilizers
- Platform and Step Lighting
- Under Platform Spot Lights
- In Cab function Controls
Add-On Options
- Water Line With Connection at Base and Platform
- Storage Compartments Under Stairs
- Two Spot Lights at Platform and Bottom of Stairs
- Upper Level Controls
- Front Positioning & Reverse Camera with Monitor in Cab
Download Product Brochure
AS228CC
