Maintenance Lifts
TL

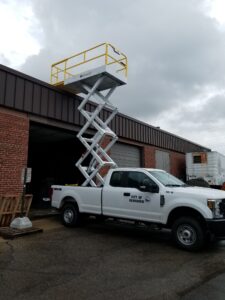

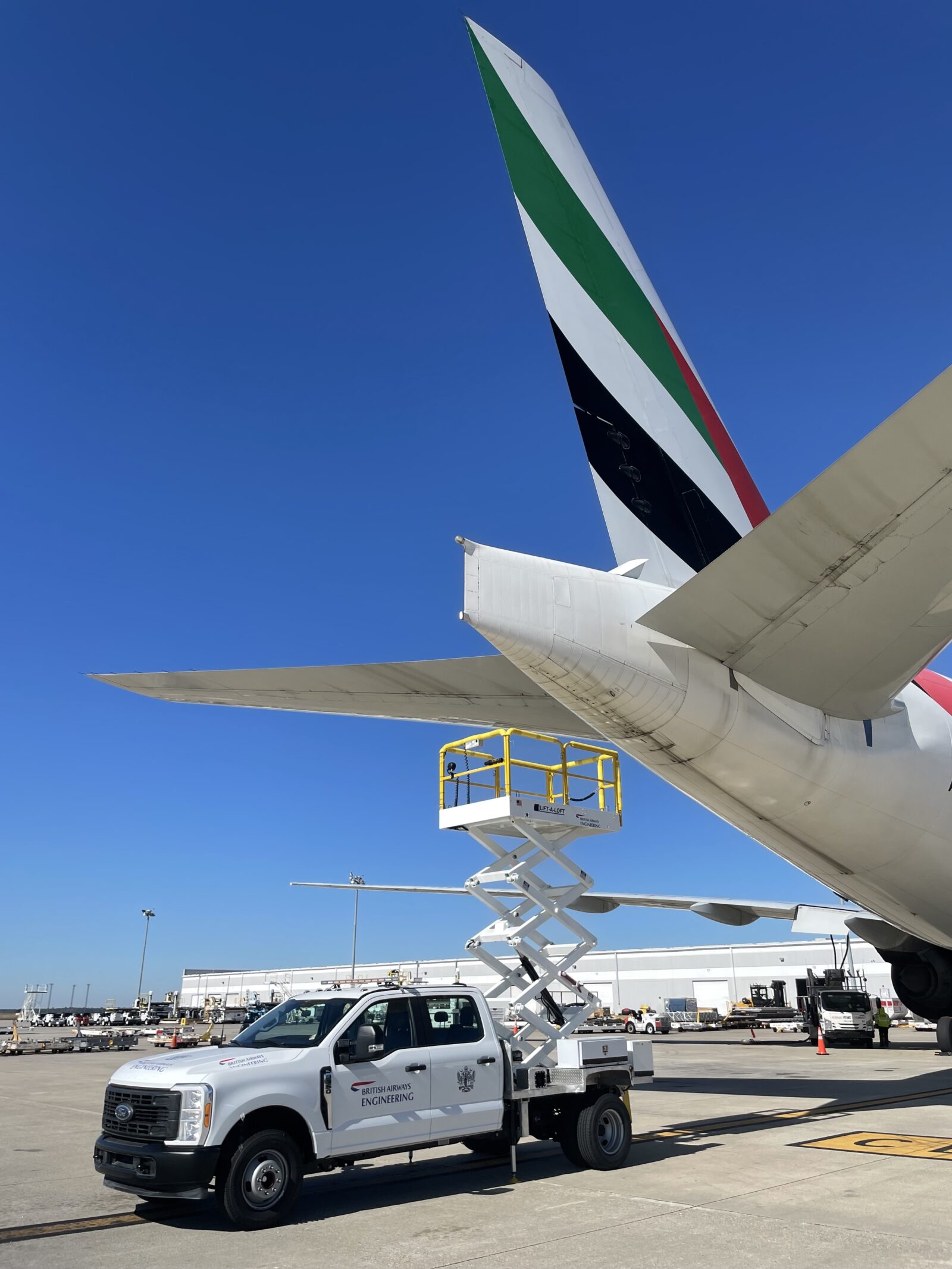

The TL22 is a truck mounted scissor lift. The unit can be mounted on a flatbed or in a conventional pick-up truck bed that offers a quick disconnect system from the truck. The unit is powered by a 12 Volt battery that is re-charged from the trucks electrical system.
Product Specifications
| Model | TL |
|---|---|
| Maximum Platform Height: | 21’10” 6.65m |
| Minimum Platform Height: | 63″ 1.60m |
| Capacity: | 500 lbs. 226.8 kg. |
| Unit Weight: | 2,100 lbs. 952 kg. |
| Overall Shut Height: | 8’6″ 2.59m |
| Platform Size: | 54″ x 88″ 1.37m x 2.24m |
| Overall Length: | 7’5″ 2.26m |
| Overall Width: | 4’6″ 1.37m |
| GVW Requirement | 8,800 lbs. 3,991 kg. |
Features
- 3′ Rear Roll-Out Extenda-Deck
- No Stabilizers Required
- Quick Disconnect System For Easy Removal from Pick-up Bed
- Unit Recharges from Trucks Electrical System
- 4 Degree Tilt Cut out
- Fork Pockets
Add-On Options
- Short Bed Installation Package
- Removable Guardrails
- Flat Bed with Toolbox
- Hydraulic Stabilizer
- Fixed Platform with 575 lbs Capacity
Product Videos
Download Product Brochure

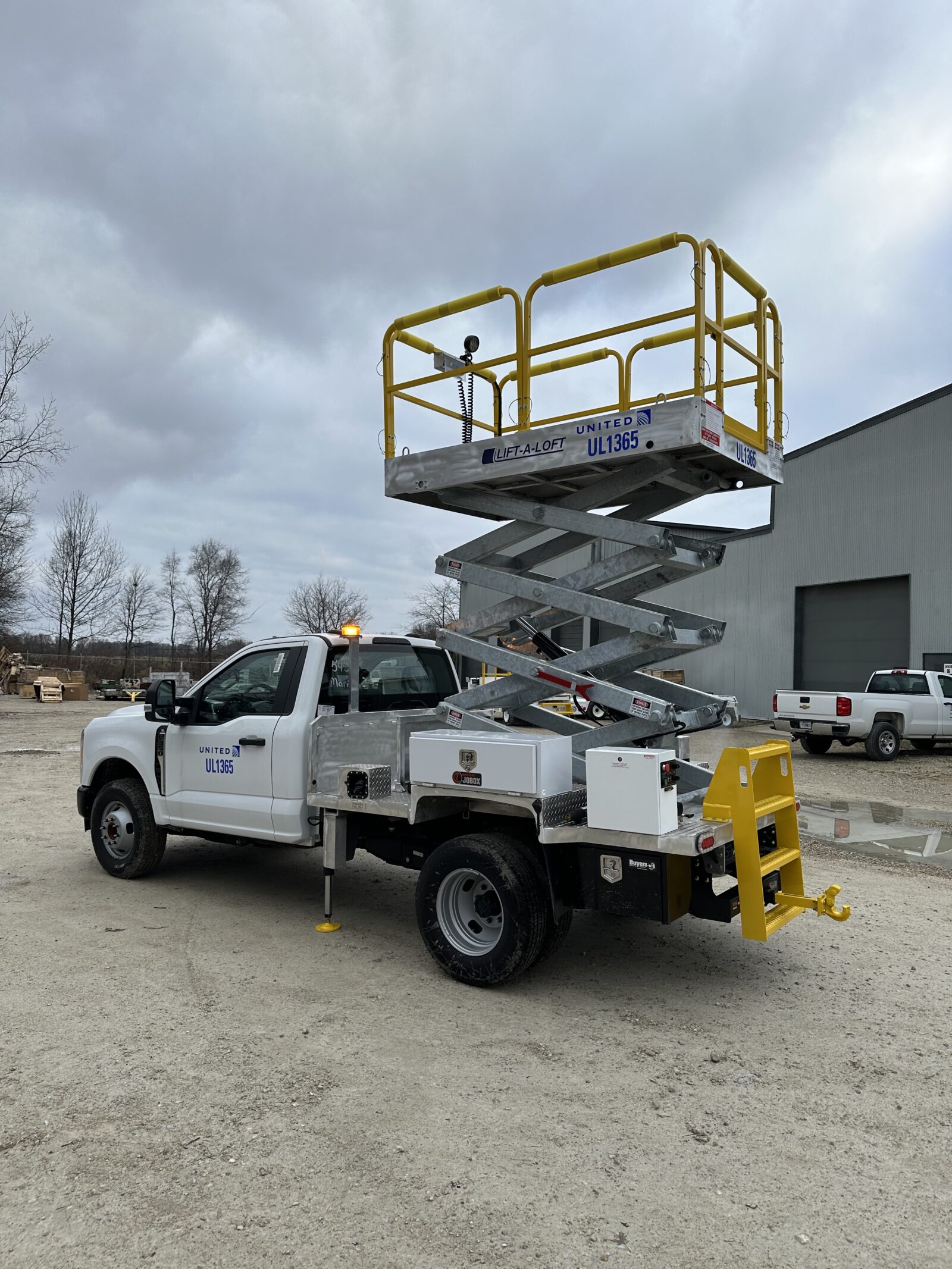

TL Series Flatbed
TL Series Pickup Bed
