Maintenance Lifts
SPX31

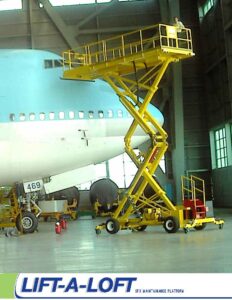

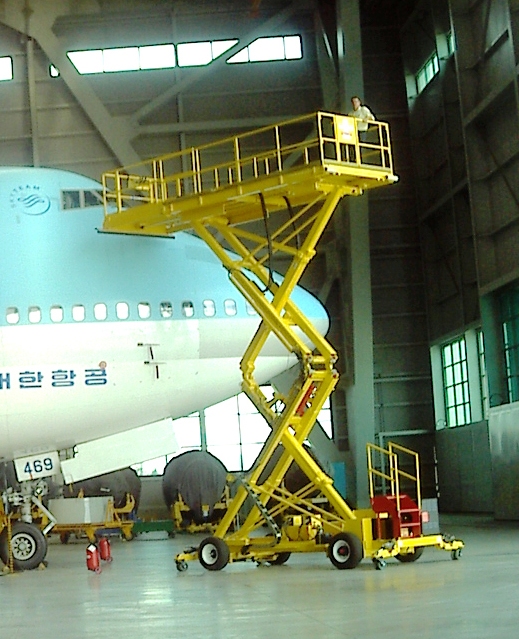

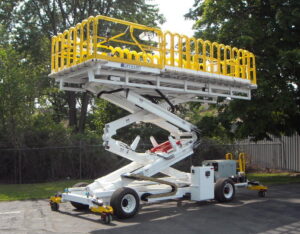

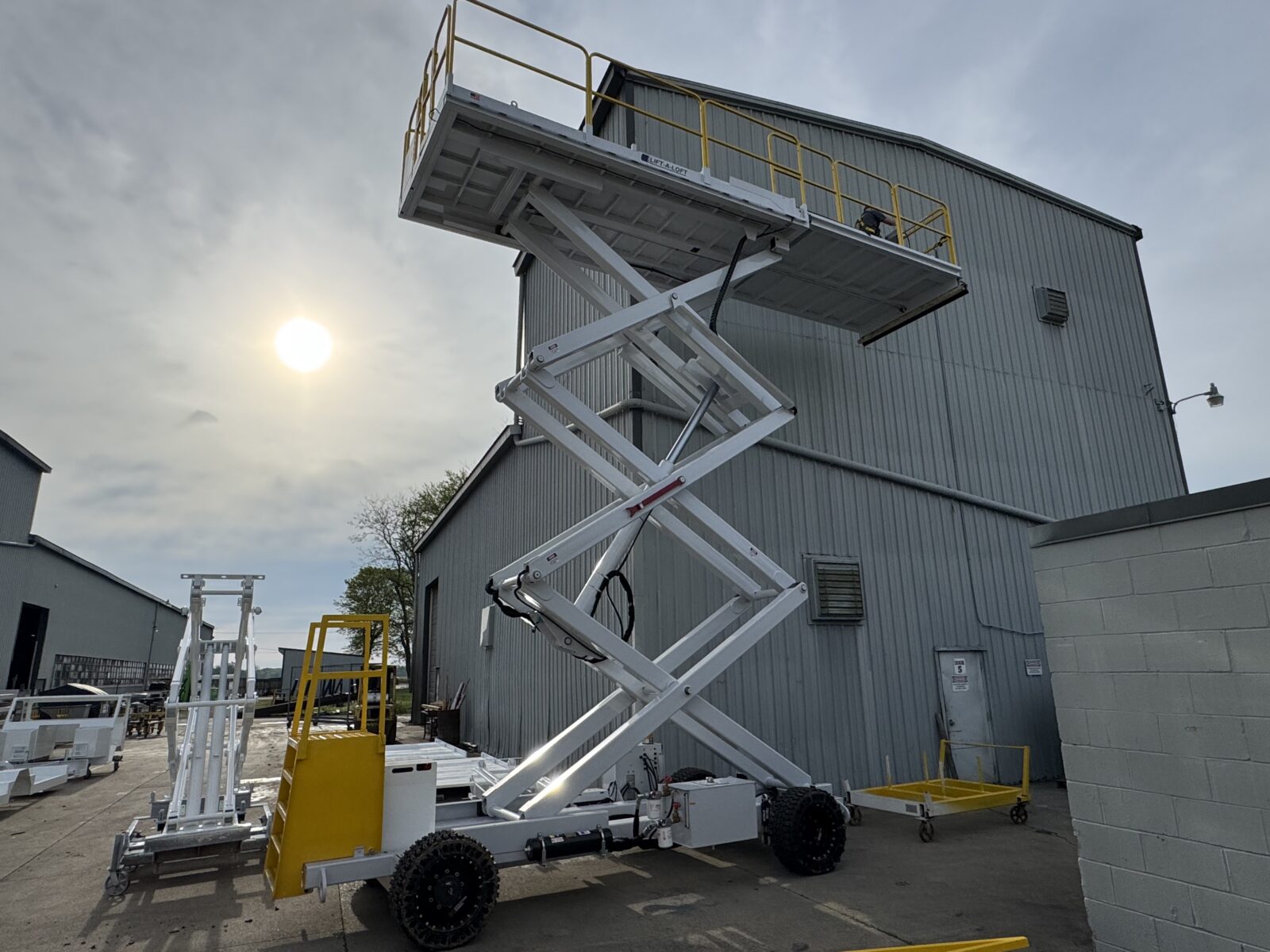

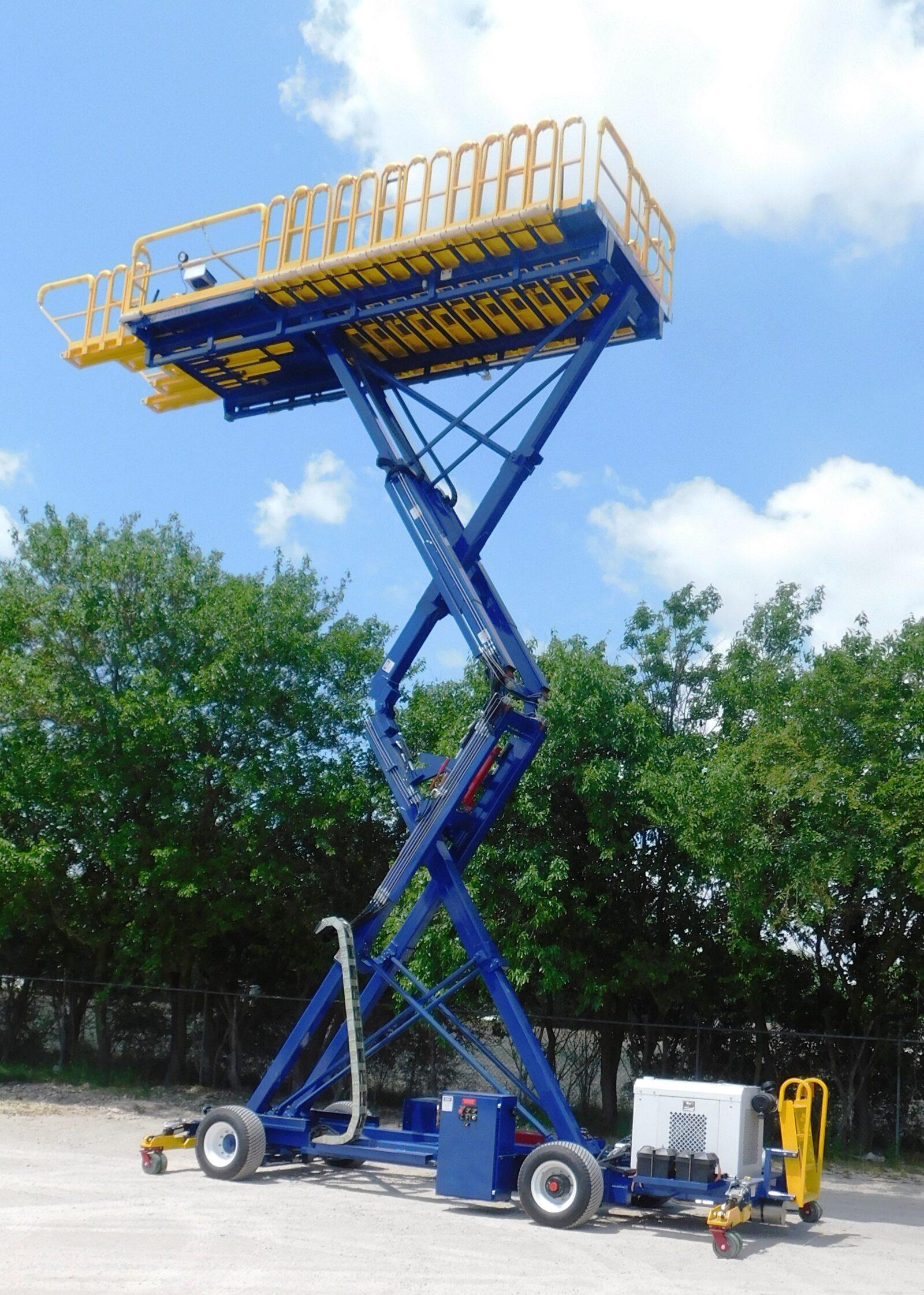

The SPX31 is a unique scissor designed specifically for aircraft maintenance. This self-propelled scissor lift offers high capacity, a large working platform and unmatched stability at full elevation. The unit can drive at full elevation.
Product Specifications
| Model | SPX31 |
|---|---|
| Maximum Platform Height: | 31′ 9.45m |
| Minimum Platform Height: | 53″ 1.35m |
| Capacity: | 3,000 lbs. 1,360 kg. |
| Unit Weight: | 19,800 lbs. 8,981.13 kg. |
| Overall Shut Height: | 9′ 2.74m |
| Platform Size: | 84″ x 180″ 2.13m x 4.57m |
| Overall Length: | 17’2″ 5.23m |
| Overall Width: | 7’5″ 2.26m |
Features
- Lanyard Attachment Points
- 2′ Side Extension Sliders
- Removable Guardrails
- Unit Can Drive at Full Elevation
- 4 Hydraulic Castered Stabilizers
Add-On Options
- 10′ Powered Extension
- Available in gas, diesel, and electric power
- Aircraft Bumper Package
- 2′ Side Extending Slider Panels
- Platform Mounted Work Lights
- Windshield Change Configuration
Product Videos
Download Product Brochure
