SP Series

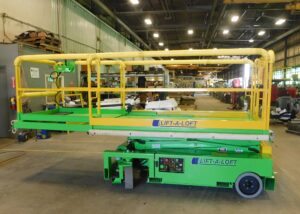

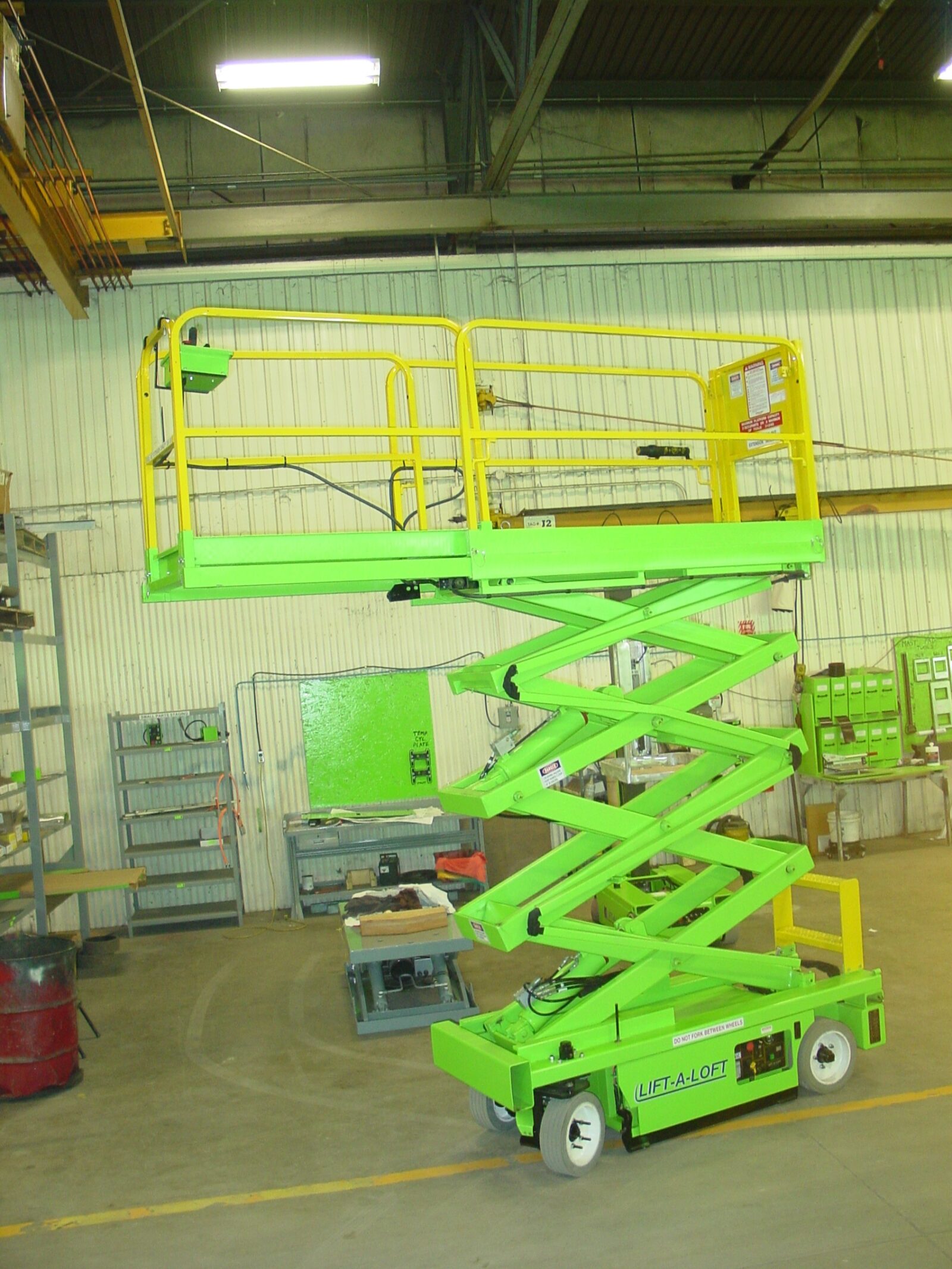

Lift-A-Loft’s SP Series was developed from the most proven design in scissor mechanisms, hydraulic systems, and safety devices. The platform with Extenda-Deck (opt) is designed for overhead maintenance. The unit is drivable and steerable at all elevations allowing easy positioning and reduced setup time.

Model	SPN16	SPN20	SPN25	SPW19	SPW24
Maximum Platform Height:	15’6″ 4.72m	19’10” 6.04m	25’2″ 7.67m	19’2″ 5.84m	23’8″ 7.21m
Minimum Platform Height:	38″ .97m	43″ 1.09m	49″ 125 cm	39″ .97m	44″ 1.12m
Capacity:	800 lbs. 362.9 kg.	700 lbs. 317.6 kg.	500 lbs. 227 kg.	1,500 lbs. 680 kg.	750 lbs. 340 kg.
Unit Weight:	3,840 lbs. 1,741 kg.	4,580 lbs. 2,077 kg.	4,900 lbs. 2,223 kg.	4,740 lbs. 2,150 kg.	5,040 lbs. 2,240 kg.
Overall Shut Height:	6’7″ 2.01m	6’1″ (folded rails) 1.85m	6’6″ (folded rails) 1.98m	6’1″ (folded rails) 1.85m	6’6″ (folded rails) 1.98m
Platform Size:	30″ x 92″ .76m x 2.34m	30″ x 92″ .76m x 2.34m	30″ x 92″ 76 cm x 233 cm	48″ x 92″ 1.22m x 2.34m	48″ x 92″ 1.22m x 2.34m
Overall Length:	7’11” 2.41m	7’11” 2.41m	7’11” 2.41m	7’11” 2.41m	7’11” 2.41m
Overall Width:	2’6″ .76m	2’6″ .76m	2’6″ 0.76m	4′ 1.22m	4′ 1.22m
